Features:
- Connection for scintillator probes (2 inch NaI + 0.5mm Thin Plastic (PVT))
- Graphical color display (800 x 480) with touch panel
- 2 Bank Spectrum presentation (2x2048 channels)
- RS232 and USB interface for printer/PC
- One or two regions of interest (ROI)
- Weight entry and spillover correction
- Storage of spectra or ROI data
- 4 different energy ranges (digital gain Adjustable)
- Half-life correction
- Real-time clock
- Nuclide library
- USB Host support
- LAN port support
- Calibrated with Cs-137
- Gain stabilization
Description:
Phoswich Detectors can measure more than one type of radiation in the same detector and distinguish between them. This not only enhances the accuracy of the measurement, it also drastically cuts instrumentation and operating cost.
The LGBS 2715 is a modern gamma & beta & beta spectroscopy system for activity measurements in laboratories. It is easy to operate and provides quick and reliable measurement results which are presented clearly arranged on a large graphical display with touch panel.
Using modern digital signal processing the system can accurately distinguish between gamma & beta-rays detected in the
mixed gamma and beta particles detected in the PVT.
The instrument is ideally suited for nuclide-specific activity measurements in the radionuclide laboratory.
The measurement electronics LGBS 2715 is a modular designed 1/2 19" system accommodated in a desktop housing comprising computer unit, graphical display with touch panel and power supply unit. For data acquisition the measurement electronics includes two additional plug-in cards, a high voltage unit with preamplifier and an ADC for the acquisition of spectra. The gamma & beta spectrometer LGBS 2115 has been designed for use in nuclear medicine, e.g. for in-vitro tests, radio- immunoassays or for the analysis of environ- mental samples, e.g. waste water, or for the detection of extremely low activities in food samples.
Various scintillation probes are available.
The measurement electronics LGBS 2715 is operated via soft keys (graphical buttons on the display) which are queried via a pressure-sensitive foil (touch panel). This allows very intuitive user guidance. Pulse height spectra can be depicted graphically and evaluated, for example, via (ROI’s). Several service functions are available: background measurement, energy calibration and spectrum recording.
For single sample measurements there is an interactive start and stop mode with corresponding protocol printouts. To facilitate measurement operation, a comprehensive nuclide library with one parameter set for each nuclide is available to the user. The LGBS 2715 supports communication with an external PC via RS232 interface Thus, it is possible to query and set parameters on the PC. Also, stored measurement data can be queried from the PC and processed on the PC. New program versions can easily be downloaded from PC to the flash E2prom using a terminal program. Parameters and service functions are contained in a hierarchically structured, very clearly arranged and user-friendly menu.
Accessories:
- Scintillation Probe: NaI crystal 1" x 2" , with photomultiplier and voltage divider, External diameter 65 mm, with complete cable set 2 m PVT 0.5mm thin Plastic scintilator crystal 2" x 0.2", with photomultiplier and voltage divider
- Lab table shielding: All-sides approx. 20 mm Pb, with complete cable set , Weight approx. 8 kg
- Test source: Need Cs-137 check source for Calibration (Not included)
- Printer: with serial or USB interface (optional)
Electrical and mechanical power required:
- TYPICAL POWER REQUIREMENTS
- Power input：range(7-30 V) to propose 12V-2A DC power the system can provide USB with 500mA limited, and they can be protected by fuse
- Power consumption: 12V-0.2A (with network cable, SD card，1 U disk，MP3 play, 3.5'LCD)
- WEIGHT
- DIMENSIONS: 220 mm x 145 mm x 50 mm (L x W x H)

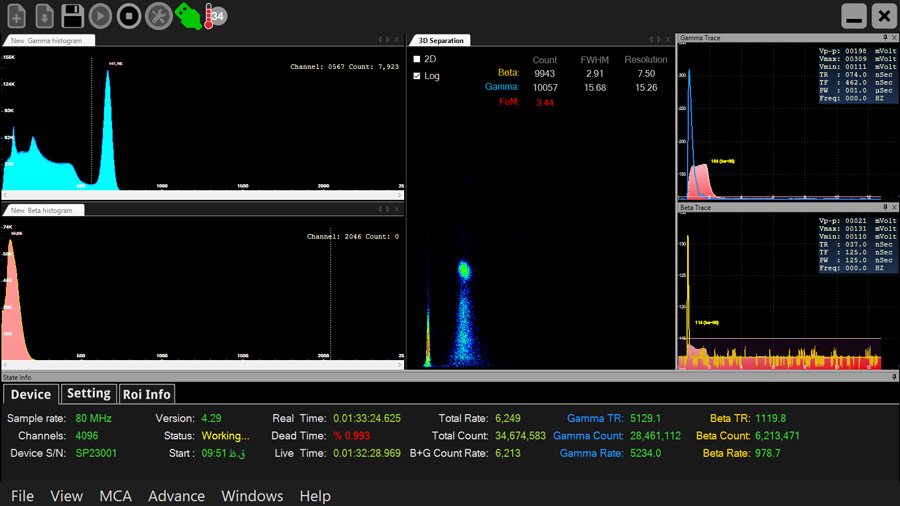

Software:
